THE POPULAR “CLASSIC CONTRACTOR” E-20
“SHORE POWER” SPRAY FOAM RIG PACKAGE

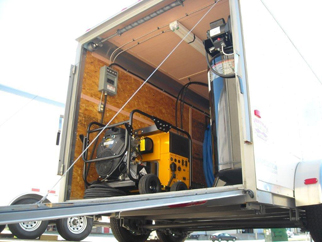

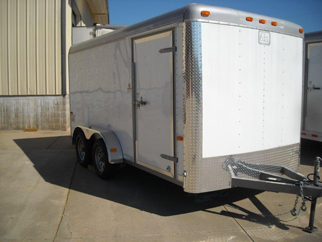

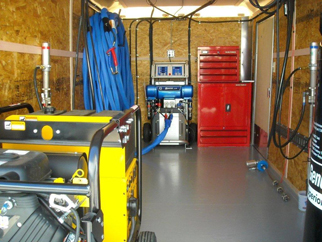

14’ X 7’ Standard Cargo Trailer (2-5/16” Receiver) Open Floor Plan
- Tandem Axle, 3,500 lb. with Brakes, 16” Stoneguard, Grey Epoxy Painted Floor, Rear Ramp & 36” Curb Side Door
- 1200 lb Heavy duty extruded aluminum ramps, fold in half for easy storage
Graco E20 Reactor Proportioner Wired Single Ø, 48 Amps @ 240 V
- Flow Output up to 20lbs. Per Minute, the Most Popular Proportioner for Spray Foam Insulators
- Capable of 2,000 PSI and Accommodating up to 200’ of Heated Hose

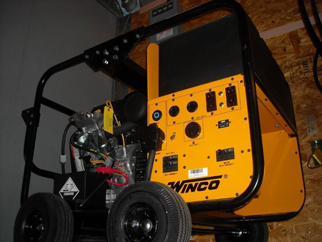

- Easily Runs Off of Shore Power or a Common Gas Powered Portable Generator
Graco Air Purge Fusion Gun (Proven to be the Easiest Gun Used on the Market)
- Complete with the 01 Mix Chamber (Produces an 11” Round Pattern at 20-24” from Target)
- Weighs only 3.1lbs with Manifold, Easy to Operate and Low Maintenance
150’ of Heated Hoses (Complete with Braided Mesh Scuffjacket)
- 2,750 lb. Rating with Thermocouple Controller that Creates Precision Chemical Heat Stabilization
10’ Heated Whip (with Gun Manifold and Scuffjacket)
- Insures Chemical Temperature Stabilization to the Gun, Fatigue Reduction “ FLEX” Design
Hose Rack (accommodates optional recirculation system)
- Capable of Safely Supporting up to 210’ Heated Hose
Chemical Return Recirculation Assembly with Desiccant Driers
- Provides Proper Drum Ventilation and Assures Moisture Free Operation and Chemical Stabilization
- Provides Quick Start-Ups unsurpassed by your Competitors and Aids in Crystallization Prevention
100’ #6/4 Wire SO Shore Power w/ Panel and Breakers
- 8’ Fluorescent Overhead Light with Shatter Resistant Bulbs
- Hanger for Easy Storage of SO Cord
Drum Mounting Station
- Includes E-Track, E-Track Clips and Ratchet Straps for Safe and Proper Drum Transport
3.5 HP 60 Gallon Cast Iron Oil Lubricated “ELECTRIC” Air Compressor Wired Single Ø, 16 Amps @ 240 V
- Approx. 12.3 CFM @ 100 PSI, Regulator with Gauge
2:1 Fluid Transfer Pumps with Feed Hoses
- Durable Stainless Steel Construction, Flow Output (Intermittent) of over 3 GPM
Desiccant Dry Air System
- 25 CFM, 3 Stage, Filter/Regulator, Oil Removal Filter & Desiccant Filter (Media Included)
Lockable 6-Drawer 33" Red Powder-Coated Steel Tool Cabinet
PPE Starter Pack
- 5 Gallon Glycol Ether, 1 Gallon Dynasolve CU-6, 1 Can of PIR, Niosh Approved Isocyanate Half Mask Cartridge Respirator, 55 Gallon Non Sparking Drum Bung Wrench, 36 in Shaver Blade For 1/2 lb Foams, Disposable Coveralls, Rubber and Cotton Gloves, Safety Glasses & Goggles
