CUSTOM “DUAL PROPORTIONER” SPRAY FOAM RIG
Customer Owned Truck or Central would be happy to research New and Used Trucks
- Heated Environment with Insulated Walls & Ceilings
- Heated Hose Access Door (helps ensure stable environment)

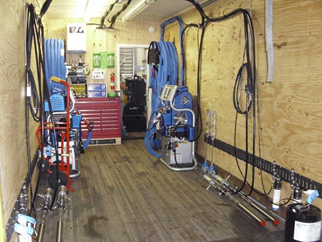

One or Two Graco E-30/H-25/H-40 Reactor Proportioners, Wired 230V Three Ø
- Flow output up to 22/30/45 lbs. per minute, can be used with spray foam
and roofing
- Capable of 2,000 psi and accommodating 300’/400’ Heated Hoses
One or Two Graco Air Purge Fusion Guns (One of the easiest to use
guns on the market.)
- Complete with Customer Specified Mix Chambers (11” round pattern at 24”
from target)
- Weighs only 2.5 lbs., Low Maintenance
200’/400’ of Heated Hoses per Machine (Complete w/ Braided Mesh
Scuffguard)
- 2,750LB. Rating w/Thermocouple Controlled
One or Two 10’ Heated Whips (with Gun Manifolds and Scuffguard)
- Insures Chemical Temperature Stabilization to the Gun)
One or Two Custom Radius Hose Racks (capable of safely supporting up
to 310’ Heated Hose)
- Complete recirculation systems (Insures stable chemical and allows for
faster startup)
- Aids in preventing crystallization in high pressure lines and heated
hoses
Generator/Compressor Room
- Walk through door and insulated wall to allow for quieter conditions
during operation)
- Automatic Motorized Louvers, Industrial Muffler System
- Service Panel with Breakers, 120V Low Voltage Shore Power Switch
- Industrial Conduit, Wiring, & Lighting
Industrial Grade “DIESEL” Fully Packaged Generators, 240V, Three Ø
- Automatic Control Panel, Spring Mounted Vibration Isolators
- Diesel Powered, Built in Fuel Cell w/Gauge, Industrial Muffler
7.5/10 HP Industrial Grade “ELECTRIC” Air Compressor, 240V, Three Ø
- 80 Gallon Register, Head Unloading Pump, Constant Speed
- Approx. 23.7/28 CFM @ 175 PSI
Refrigerated Air Dryer
- Industrial Grade Refrigerant Air Dryer (ensures clean, dry air to gun)
High Output Fluid Transfer Pumps w/ Feed Hoses
- Durable Stainless Steel Construction
Industrial Grade Tool Cabinets
- With Heavy Duty Work Tops
Heavy Duty Respirator System (Niosh Approved)
- 115V/230V AC, 60 Hz or Compressed Air Conversion Units
- Two Continuous Flow Full Face Masks
- Breathing Air Hoses to Match Heated Hose Lengths
Air Powered Mixer
- (Variable speed control for maximum chemical efficiency)
Thermostatically Controlled Drum Strap Heaters for Metal or Poly
Drums
Starter Package
- Solvent Flush Kit, Drum Dolly, Non-Sparking 55 Gallon Drum Wrench, Gun Cleaning Kit, Gun O-ring Kit,
5 Gallon Gun Solvent, Disposable Coveralls, Niosh Approved Isocyanate Half Mask Cartridge Respirator, Safety Goggles &
Safety Glasses, Rubber & Cotton Gloves, 36” Shaver Blade for ½ lb. Foams, Tools, Eyewash, First Aid & Fire Extinguishers
EACH UNIT IS CUSTOM BUILT, REQUIRING UP TO 10 DAYS TO MANUFACTURE
Popular Options: (Many Others Available)
____50’ Section of Heated Hose with Braided Mesh Scuffguard
____Dynasolve CU6-1 gallon
____Fusion Gun Basic Rebuild Kit
____Additional Fusion Gun with Mix Chamber (specify size)
____Fusion Gun Front End with Mix Chamber (specify size)
